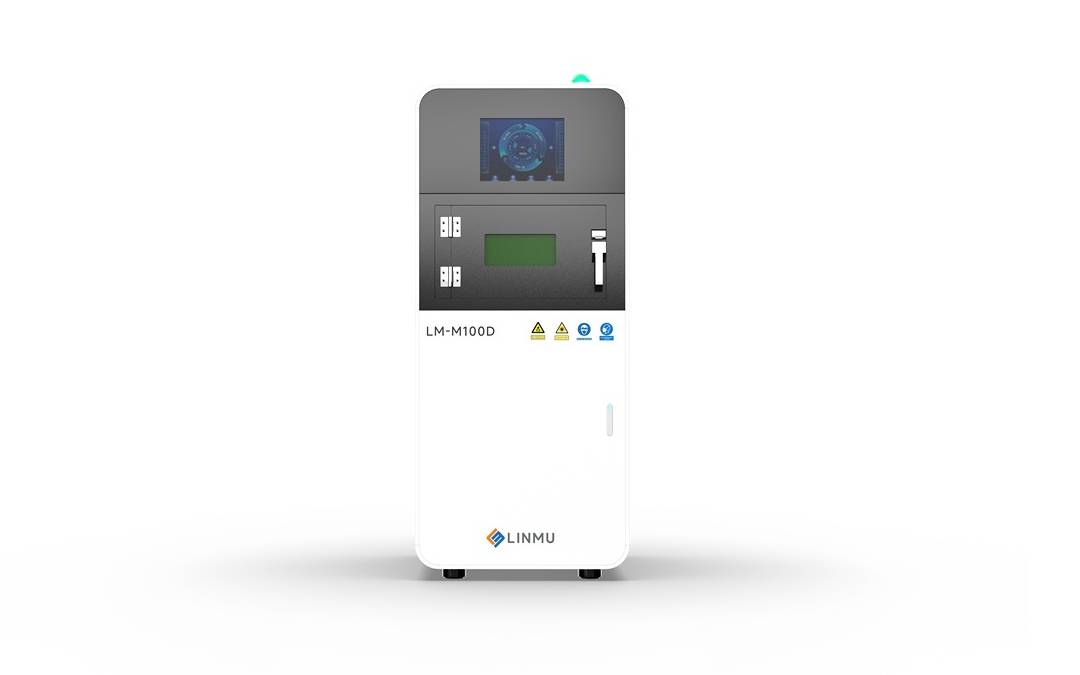

| Features | |
| Dimensions: | 960x730x1788 mm3 |
| layering thickness: | 20-120 μm |
| Max Speed: | 20 cm³/h |
Laser area
Tricolor lights
Print video available
Lorem Ipsum Dolor Sit Amet, Consectetur Adipisicing Elit. Sed Do Eiusmod Tempor Incididunt Ut Labore Et Dolore Magna Aliqua. Ut Enim Ad Minim Veniam, Quis Nostrud Exercitation Ullamco Laboris
Explore applications for 3D printing across a range of industries

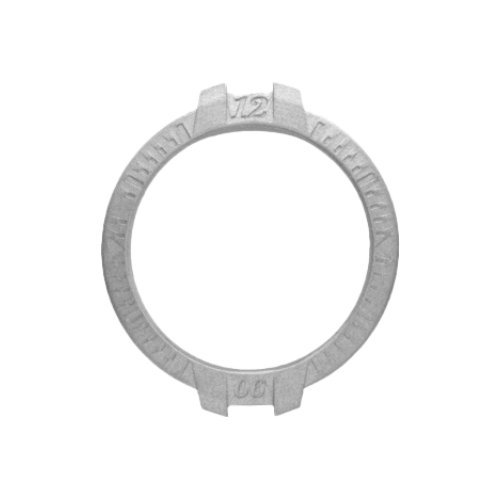

Material：TC4
weight：0.1kg
Application：Medical

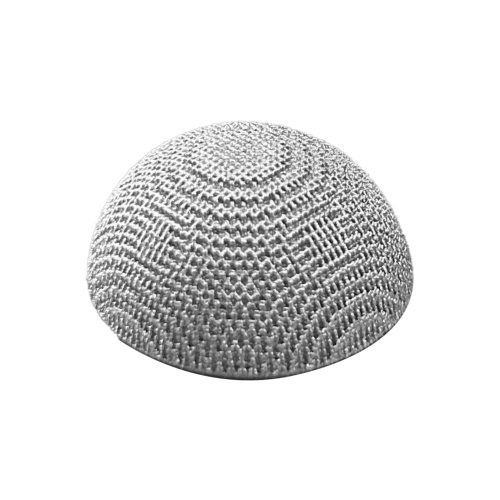

Material：TC4
weight：0.01kg
Application：3C
Material：316L
weight：0.4kg
Application：3C
Material：316L
weight：350g
Application：Energy
| Dimension | 960x730x1788 mm³ (Length, Width, Height) |
| Build volume | 153 x 153 x 120 mm |
| Scanning Speed | 7 m/s |
| Light Spot Diameter | 50μm-100μm |
| Light source | 500W |
| Powder Layering Thickness | 20μm-120μm |
| Forming Speed | 20 cm³/h |
| Applicable Material | Titanium alloys, high-temperature alloys, stainless steel,high-strength steel,die steel,etc. |
| Chamber Oxygen Level | ≤100ppm |
| Electrical Consumption | 380V, 34 KW |
| Protective Gas | Nitrogen/Argon |
| Data Format | STL or other Convertible File |
| Complementary software | TH-3Dprint |
| Weight | 0.8T |

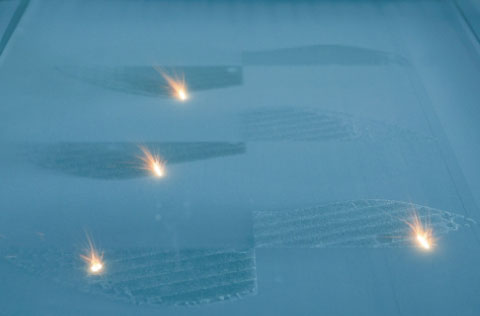

Metal 3D Printing is a cutting-edge additive manufacturing technology that builds fully dense metal parts directly from digital designs. Using high-precision lasers to selectively melt fine metal powders layer by layer, it enables unparalleled design freedom, exceptional detail, and performance-grade strength.
Our R&D team is dedicated to improving printing accuracy and production efficiency through precise laser parameter control,
temperature management, and material parameter adjustments
Our engineers will help select the best-fit solution based on your part complexity, material, and production needs.

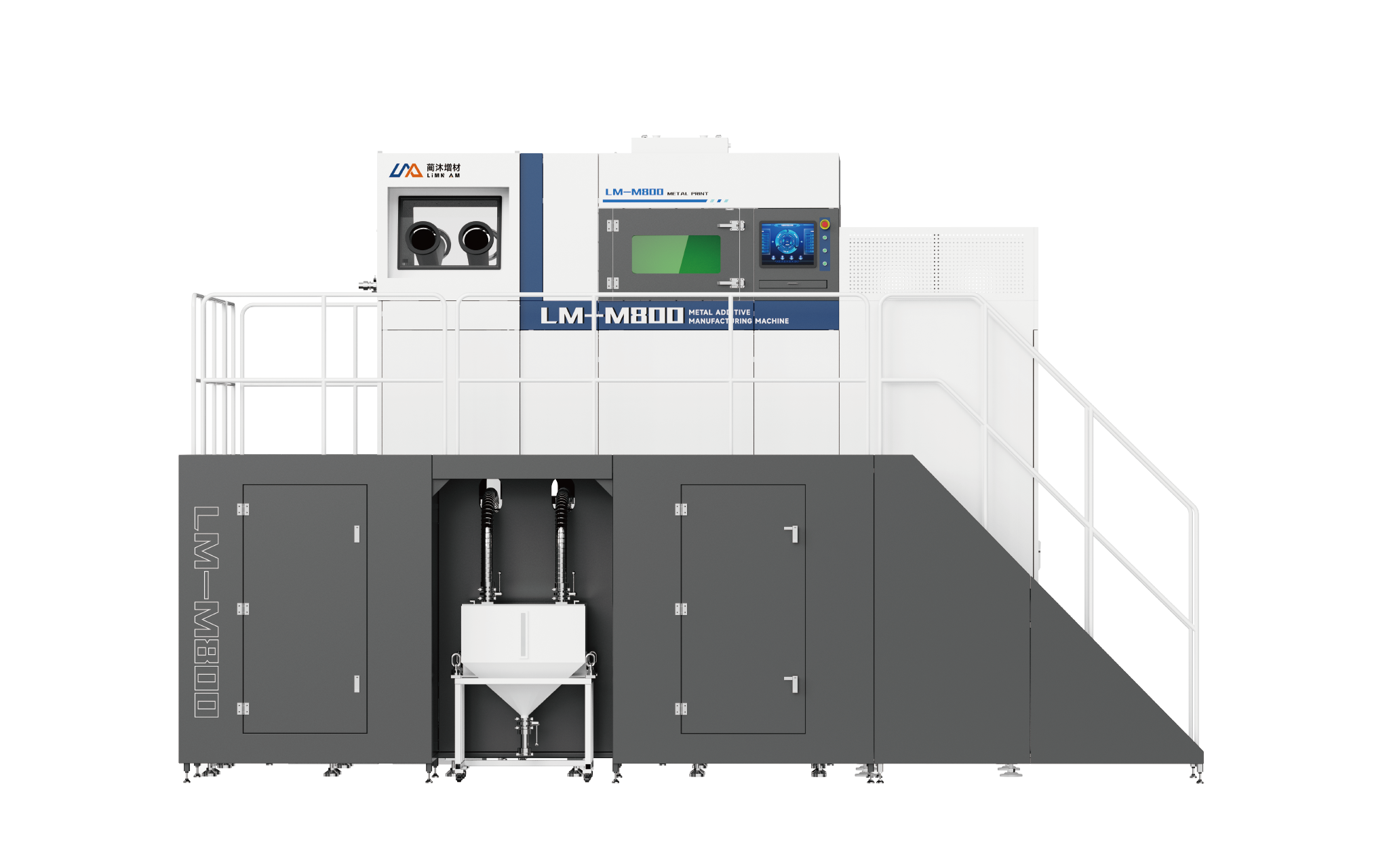

807×607×900 mm build size with 4/6/8 laser options. High efficiency and precision for aerospace, molds, and automotive parts.

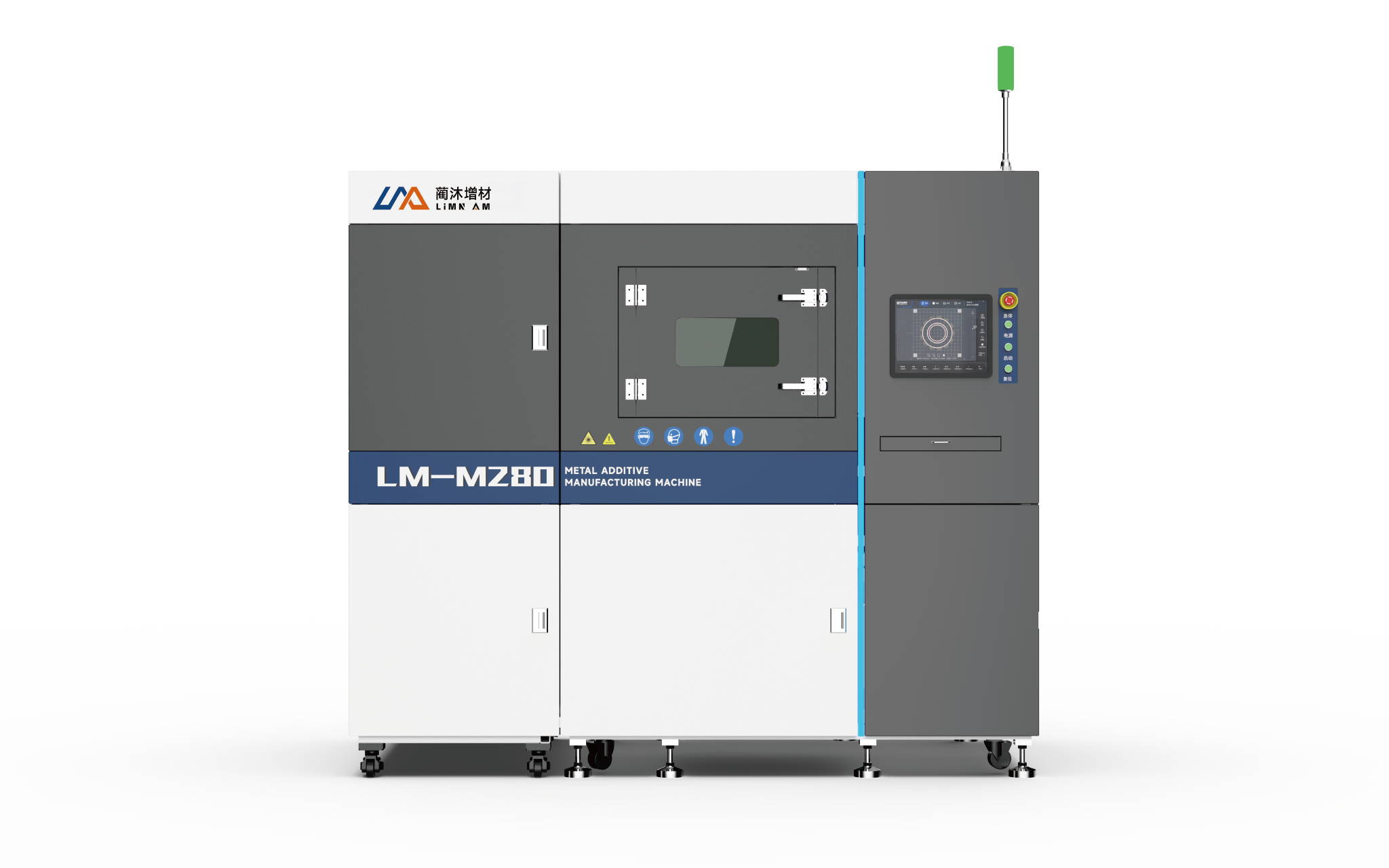

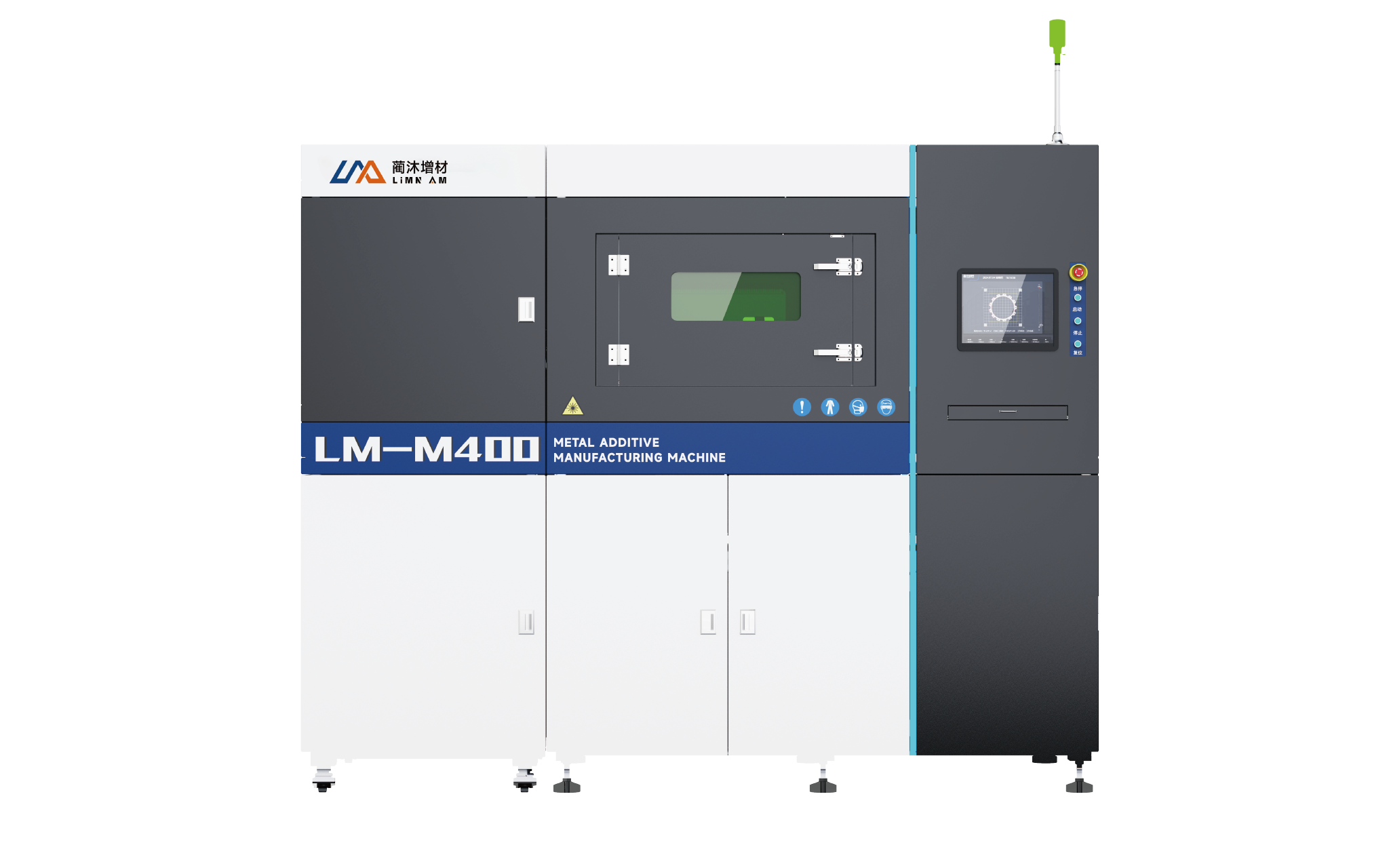

286×286×450 mm build size with single or dual-laser options. Supports titanium, aluminum, nickel alloys, and more—perfect for aerospace and tooling applications.

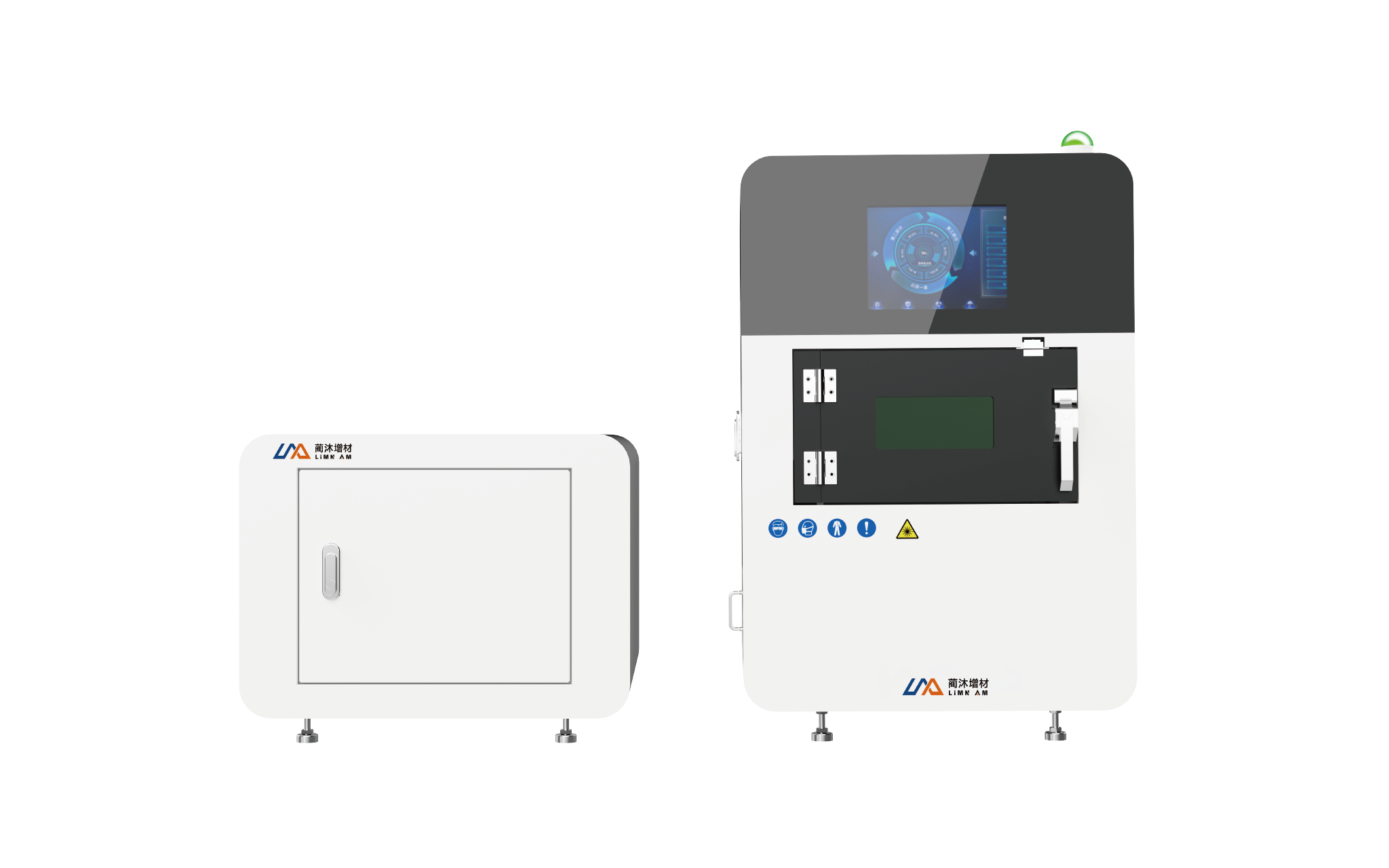

Small-format design for rapid prototyping with industrial-grade metals. Supports one-button printing and remote control—ideal for research and product development.
406×206×230 mm build area with 20 μm resolution. Captures fine sole textures and logos. Optimized powder system for stable shoe mold production.
